Core Advantages of a Professional Panel Mount Computer Monitor Manufacturer: Performance and Quality Combined
Industrial-Grade LCD Display: Equipped with a 350 cd/m² high-brightness A-grade screen and 16.7M true-color display, delivering clear and detailed visuals that adapt to various ambient lighting conditions, ensuring visibility even in strong light environments.
High-Definition Capacitive Touch: Precise, smooth, and responsive operation with strong wear resistance, capable of withstanding frequent clicks and complex operations. Supports multi-touch, ideal for human-machine interaction-intensive scenarios.
Multi-Layer Protection Design: The entire body structure is made of pressure-resistant metal material, offering excellent dust resistance, pressure resistance, and anti-interference performance. It operates stably in complex environments with high dust, electromagnetic interference, and frequent vibrations.
Silent Cooling System: The device features an efficient heat dissipation design with fanless silent operation, effectively reducing failure rates, extending service life, and meeting 24/7 uninterrupted operation requirements.
Flexible Embedding for Space Efficiency
The device comes with hidden embedded hooks, supporting both internal and external installation methods. It meets various embedded deployment needs for cabinets, walls, and equipment panels, offering simple installation and an aesthetically pleasing structure. It can be widely used in industrial control consoles, self-service terminals, commercial displays, and other scenarios.
Strong Customization Capabilities and End-to-End Services
As a source manufacturer, we provide comprehensive OEM/ODM services, covering appearance molds, hardware configurations, operating systems, and interface customization.
Whether for embedded industrial computer hosts, all-in-one touch terminals, or customized requirements such as multiple serial ports and network ports, we can respond quickly and deliver in bulk.
| LCD Panel Parameters |
Screen Size |
13.3 Inch |
| Display Area |
294 mm.(Height) X 165.5(Width)mm. |
| Aspect Ratio |
16 : 9 |
| LCD Type |
a-Si TFT-LCD Monitor |
| Maximum Resolution |
1920 X 1080 |
| Display Color |
262K, 45% NTSC |
| Brightness |
220cd/m² |
| Contrast Ratio |
800 : 1 |
| Viewing Angle (Up/Down/Left/Right) |
85°/85°/85°/85° (Type)(CR≥10) |
| Response Time |
30ms |
| LCD Panel Lifespan (Hours) |
60,000(Hour.) |
| Field Frequency |
60Hertz |
Audio Parameters
(External Speaker Option) |
Audio system |
Stereo |
| Speaker size |
≈ 99 x 45 x 20 mm |
| Impedance |
8 Ohm |
| Power |
2 x 5 Watt |
| Loudness |
> 80 Decibel |
| Interface |
4-pin connector |
| Onboard Interface |
HDMI Input |
1 |
| VGA Input |
1 |
| DVI Input |
1 |
| USB Type B or any desired USB Type |
1 |
| Power |
Power Supply |
Alternating Current 100V~240V, 50/60Hz |
| Maximum Power Loss |
≤ 25 Watt |
| Standby Mode Power Loss |
< 1 Watt |
| Features |
Operating Temperature |
0℃ ~ 50℃ |
| Storage Temperature |
Below 10℃ ~ +60℃ |
| Accessories |
Power Cord Length |
1.5m |
| HDMI Cable Length |
2m |
| USB-A to USB-B Cable Length |
1.5m |
| Stereo Speaker Size with Connector |
99*45*20mm |
| Stereo Speaker Length |
1.5m |
| Package Size |

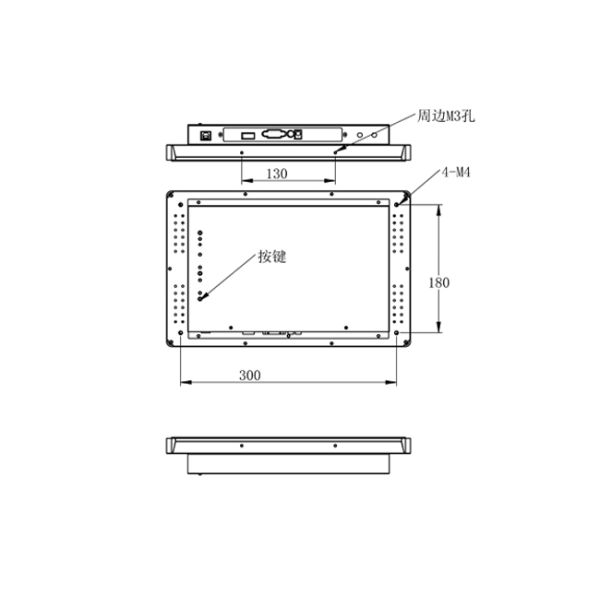

Device Dimensions |
339 X 219 X 51.7mm. |
| Net Weight |
3 Kilogram |
| Package Size |
38.9 X 27.4 X 11Centimeter |
| Gross Package Weight per Unit |
4 Kilogram |
Choosing a Professional Panel Mount Computer Monitor Manufacturer that truly understands the industry means not only selecting a product but also laying a stable foundation for the long-term operation of your project.
